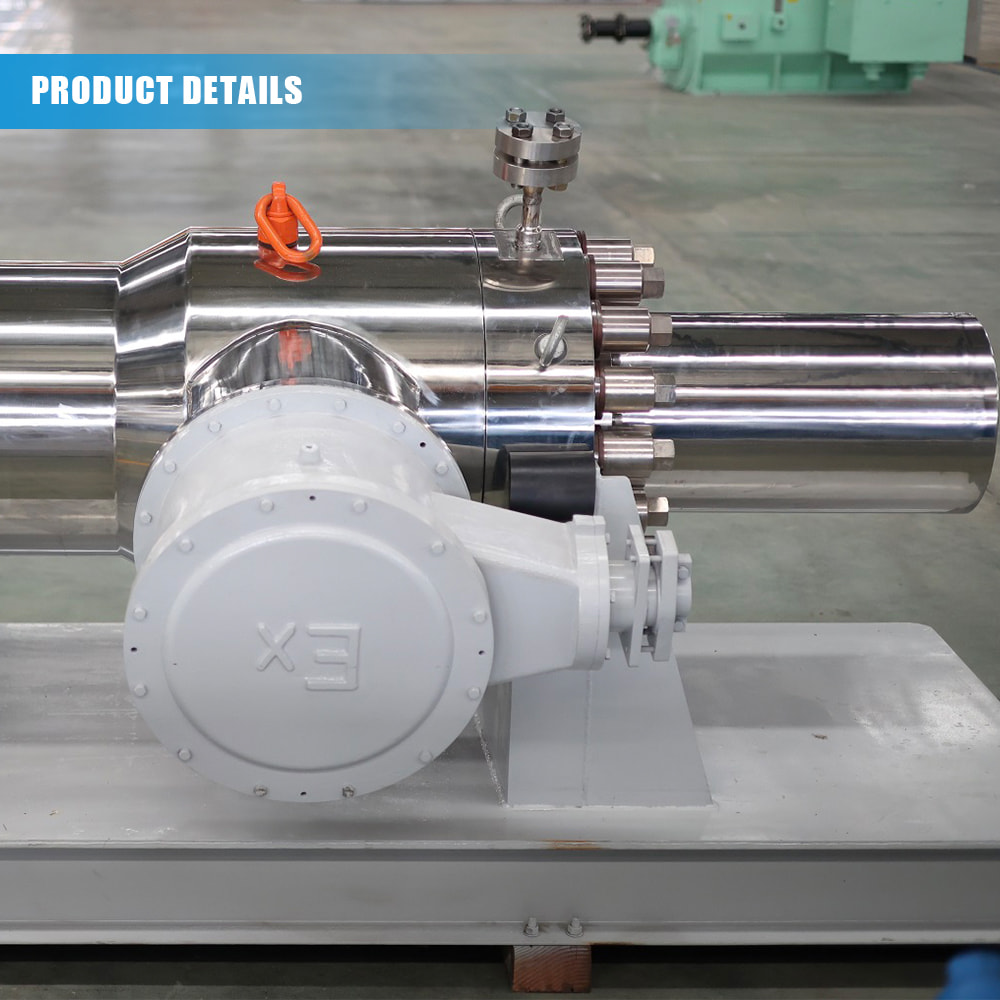

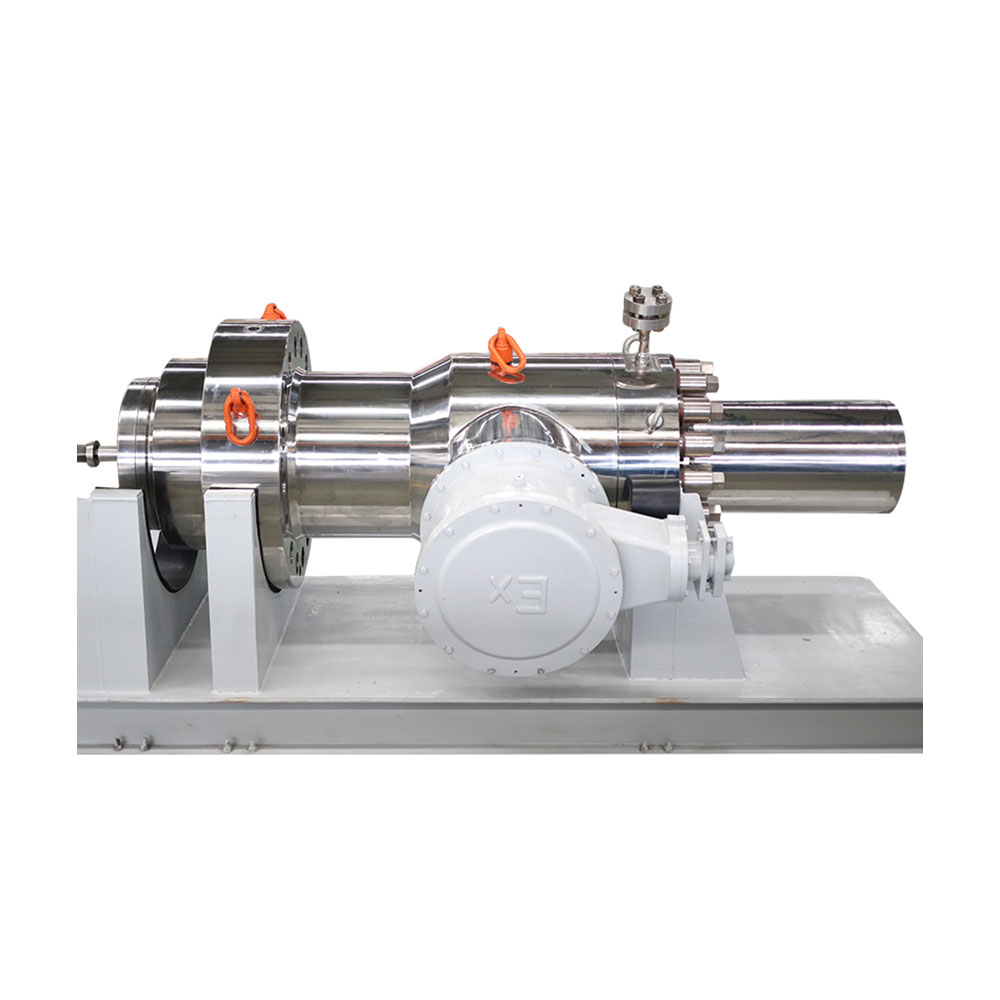

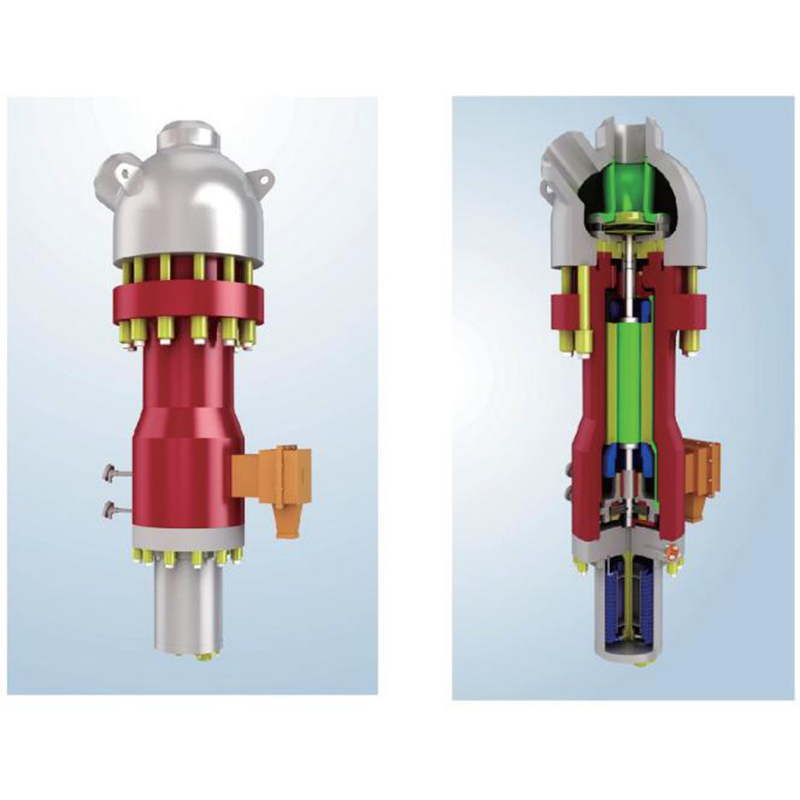

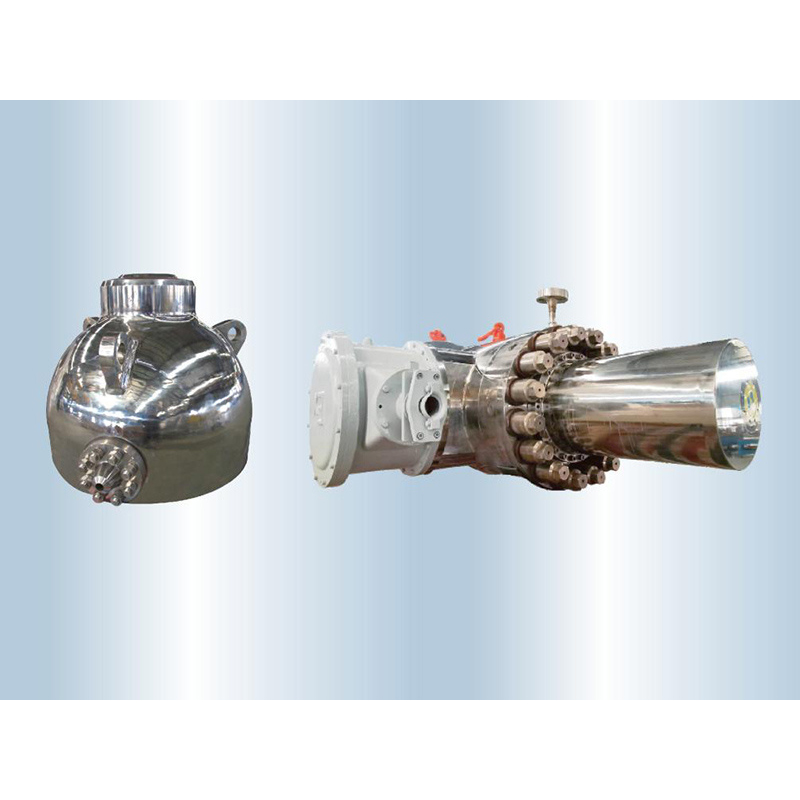

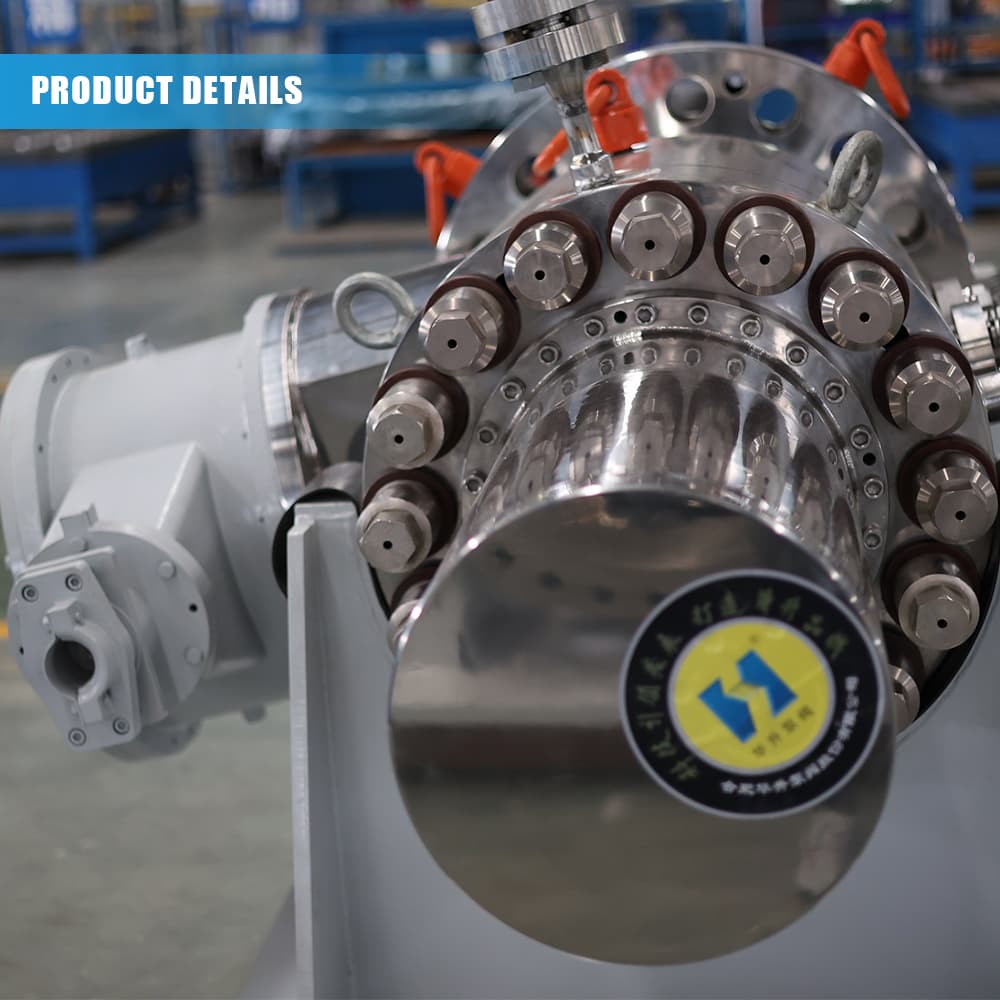

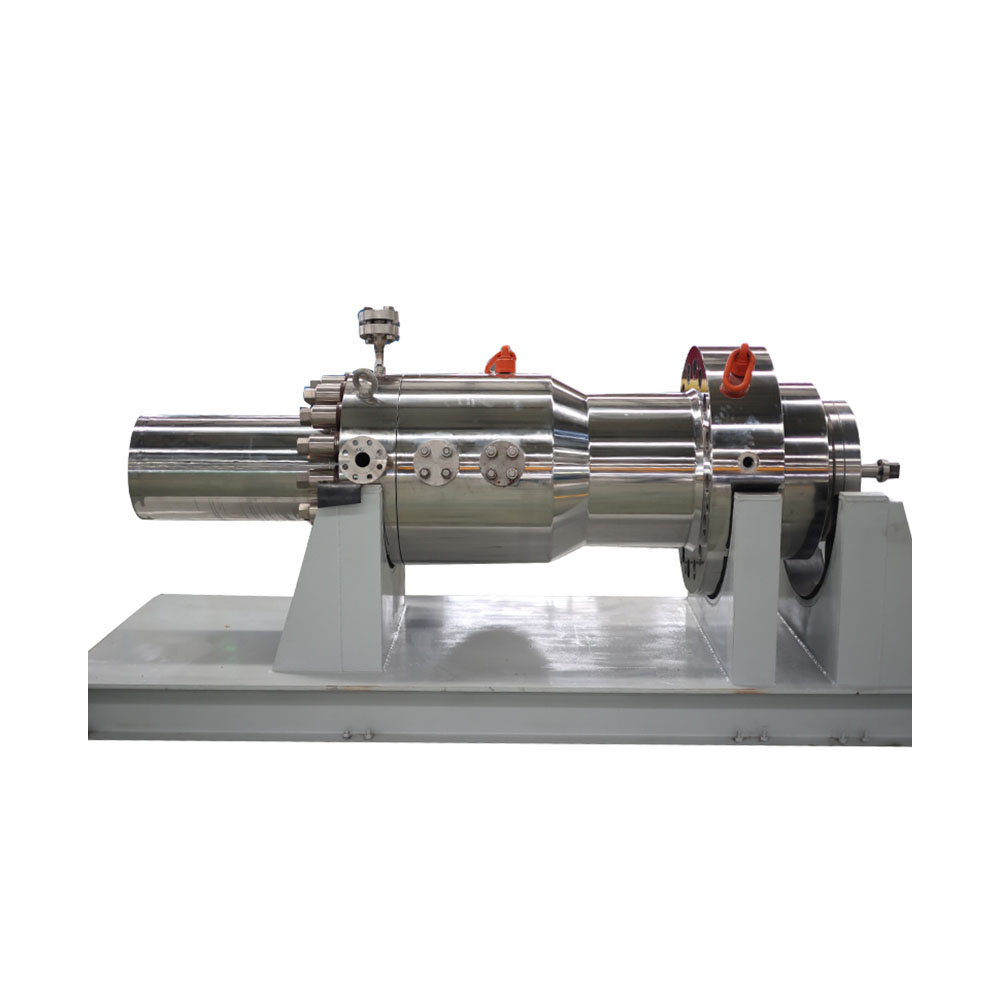

Hydrocracking reactor centrifugal circulation pump (Ebullated Pump)

In 2010, the company began to develop the core components of annular tube pumps. In 2014, it signed a 100,000-ton annular tube axial flow pump research and development contract with Sinopec Wuhan Branch. In 2018, Huasheng Pumps and Valves' first 100,000-ton annular tube axial flow pump passed the two-year industrial assessment and passed the acceptance smoothly. The company has expanded its new product development from 100,000 tons/year polypropylene unit axial flow pumps to 200,000 tons/year and 350,000 tons/year, and then gradually covered the product performance to 600,000 tons/year polypropylene unit axial flow pumps. In the continuous research and development process, the company has accumulated a complete set of design, manufacturing, inspection, testing and other experiences and user on-site use performance, achieving full coverage of the spectrum of 100,000 to 600,000 tons/year polypropylene and polyethylene, filling the domestic gap in such technology and products.

The pump has complex application conditions, with medium temperatures as high as 500°C and inlet pressures up to 30MPa, and the medium is highly abrasive. In 2018, Huasheng Pumps & Valves undertook the "Residue Oil Hydrogenation Boiling Pump Development" project, relying on the project parameters of Sinopec for research and development. The product has been delivered and is running smoothly.

Our basic API 610 type OH2 pumps are centre line mounted, single stage, overhung pumps with a single bearing housing. The pump and motor  are flexibly coupled and installed on a common baseplate. The coupling design allow removal of the back pull-out assembly without disturbing the driver, coupling hubs or casing.

Our standard single-stage API 610 BB2 type pumps are centerline-mounted, radially split, and feature a double-suction design with bearings located between the suction and discharge ends. These pumps and their motors are flexibly coupled and mounted on a shared baseplate. The radial casing pull-out design allows for the removal of the rotor assembly without the need to disturb the driver, coupling hubs, or casing nozzle connections

slurry pump is engineered for API 610 applications. This pump is a double walled pump where the outer casing manages the pressure and the internal liners are made from erosion resistant material that provides long life. The impeller is also made from the same erosion resistant material and is a true slurry design with repelling vanes in place of wear rings.

High-pressure reciprocating pumps are usually used in small and medium flow and high pressure conditions, and can replace high-speed pumps and multi-stage pumps to a certain extent. The high-pressure reciprocating pumps developed by our company have been successfully applied in fertilizer plant methyl ammonia pumps, liquid ammonia pumps, dimethyl pumps, BDO plant BYD high-pressure feed pumps, hydrogenation plant high-pressure water injection pumps and other fields, with a maximum flow rate of 100m3/h and a maximum discharge pressure of 50MPa. Huasheng Pumps and Valves has obtained "multiple invention patents" around the research on the structure of reciprocating pumps and diaphragm pumps. The company's new products such as chemical hydrogenation water injection high-pressure reciprocating pumps, BDO plant BYD feed pumps, water-coal slurry, and high-pressure diaphragm pumps have completely replaced imports and filled the domestic gap.

The BB5 type pumps are double casing, radially split multistage between bearing pumps conforming to API 610 requirements. These pumps are suitable for wide applications in high pressure fluid handling in oil refineries and petrochemical industry. The discharge pressures are designed up to class 2500 and suitable for suction pressures up to 79 bar (g).

The design, manufacture, inspection and testing of the VS6 barrel pump are all in accordance with the American API610 standard. It is a vertical, suspended, double-layer pump casing (the inner layer is the guide casing) pump. It is mainly composed of a barrel, an inner casing, a bottom plate flange, a motor frame, a mechanical seal, a motor, etc. The motor and the main shaft are connected by a diaphragm coupling.

 API 610 (OH3) vertical in-line pump provides benefits of low installation costs and space savings.without compromising reliability, maintainability, safety or hydraulic performance.

OH6 series GSB high speed pump is a high-speed partial flow pump with novel impeller and seal structure design. It can replace multi-stage centrifugal pumps in the field of small flow and high head in chemical processes. The products are widely used in petroleum, chemical, seawater desalination, electric power and metallurgical industries.

API 610 type VS5  vertically suspended, cantilever sump pumps with discharge trough the column. The pump and motor are flexibly coupled and supported by a mounting flange.

Flow centrifugal pumps are available in various configurations, such as electric motor, engine drive, or frame-mount pedestal drive. These pumps are constructed using materials like Cast Iron,  Stainless Steel, Bronze, and Thermoplastics. They feature different pump types, including mechanical shaft seal, Packed, and Magnetic Drive.

Our BB5 multi-stage, double-casing, centrifugal pumps are engineered for reliable 20-year operation, well proven with over 1,000 units installed worldwide. They’re highly efficient with an optimized hydraulic design that provides low net positive suction head (NPSH)—close to the maximum theoretical threshold.
