In 2010, the company began to develop the core components of annular tube pumps. In 2014, it signed a 100,000-ton annular tube axial flow pump research and development contract with Sinopec Wuhan Branch. In 2018, Huasheng Pumps and Valves' first 100,000-ton annular tube axial flow pump passed the two-year industrial assessment and passed the acceptance smoothly. The company has expanded its new product development from 100,000 tons/year polypropylene unit axial flow pumps to 200,000 tons/year and 350,000 tons/year, and then gradually covered the product performance to 600,000 tons/year polypropylene unit axial flow pumps.
In the continuous research and development process, the company has accumulated a complete set of design, manufacturing, inspection, testing and other experiences and user on-site use performance, achieving full coverage of the spectrum of 100,000 to 600,000 tons/year polypropylene and polyethylene, filling the domestic gap in such technology and products.
Medium :
PP、PE、LAO、PAOFlows :
to 18,000m3/h (11,520GPM)Heads :
to 70m (229.6 ft)Temperatures :
to 200℃(392℉)Pressures :
to 100 bar (1,454 PSIG)Speed :
/API Type Code :
/Horizontal loop reactor axial centrifugal chemical flow pump
Product profiles:

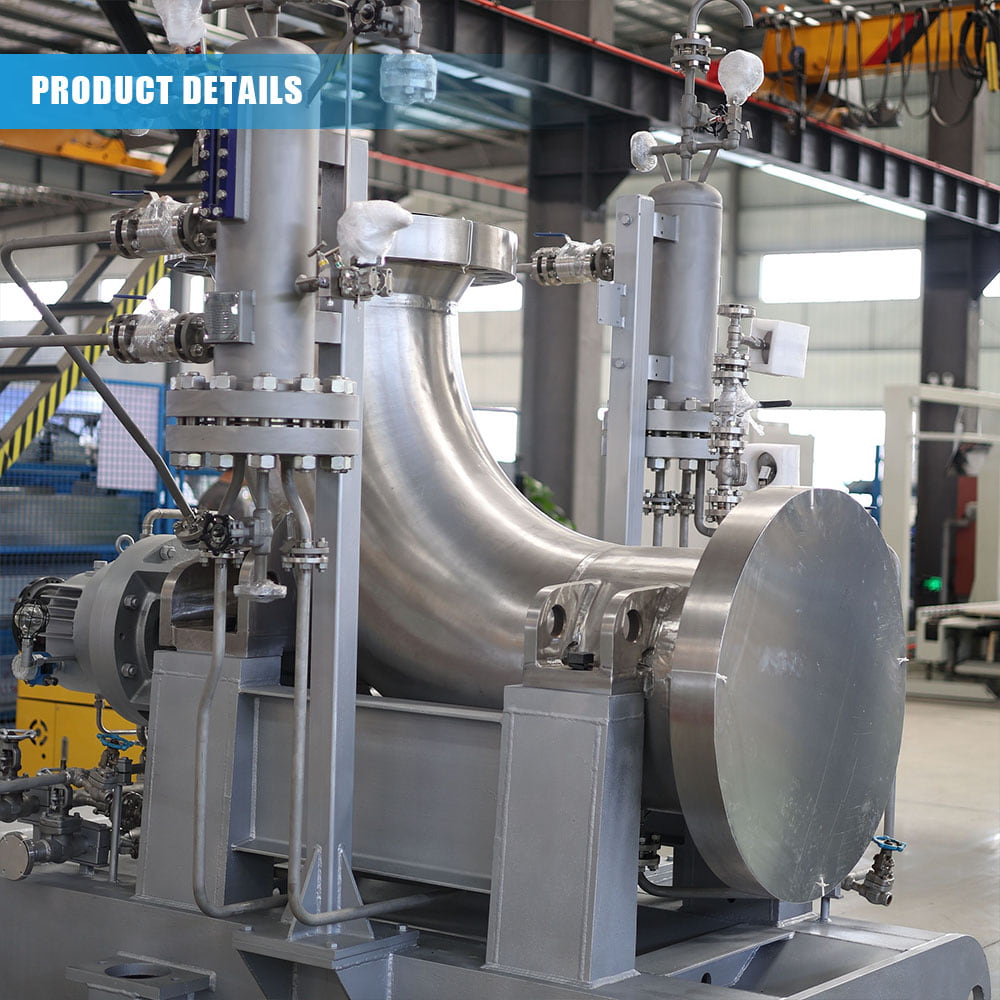

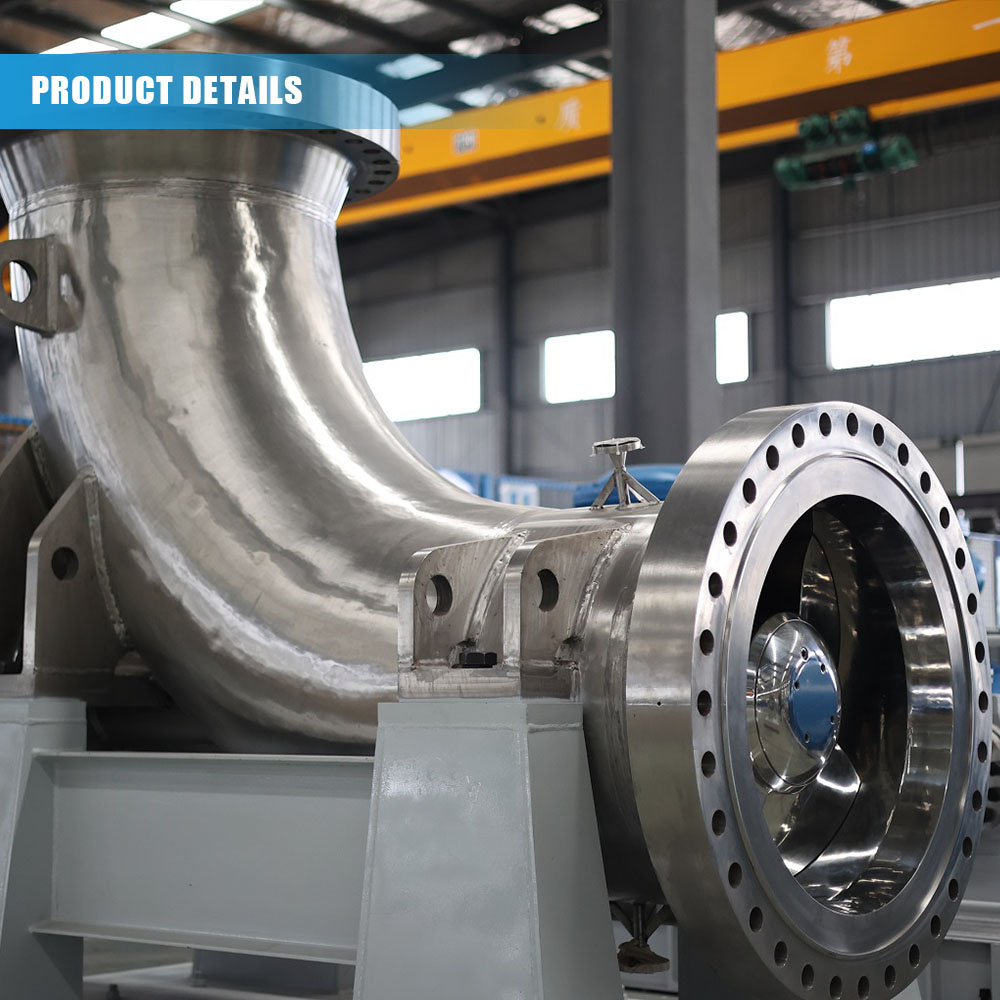

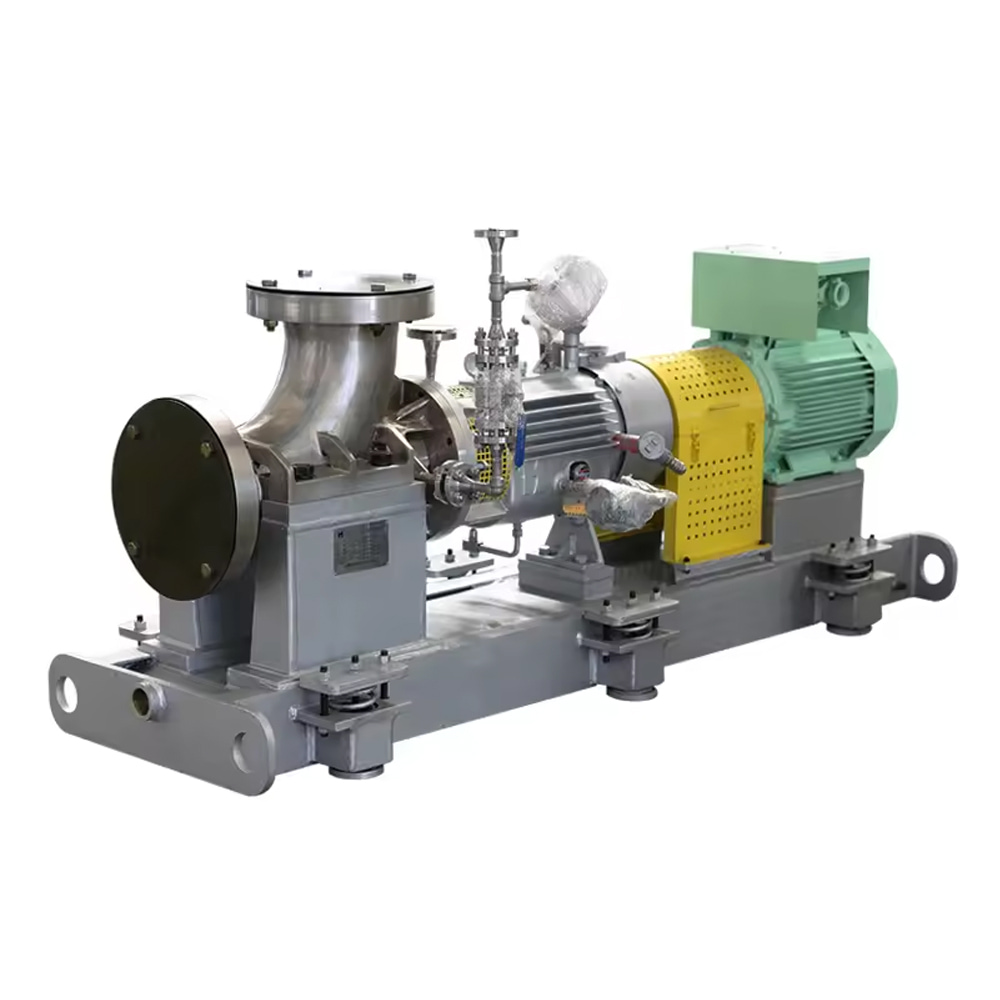

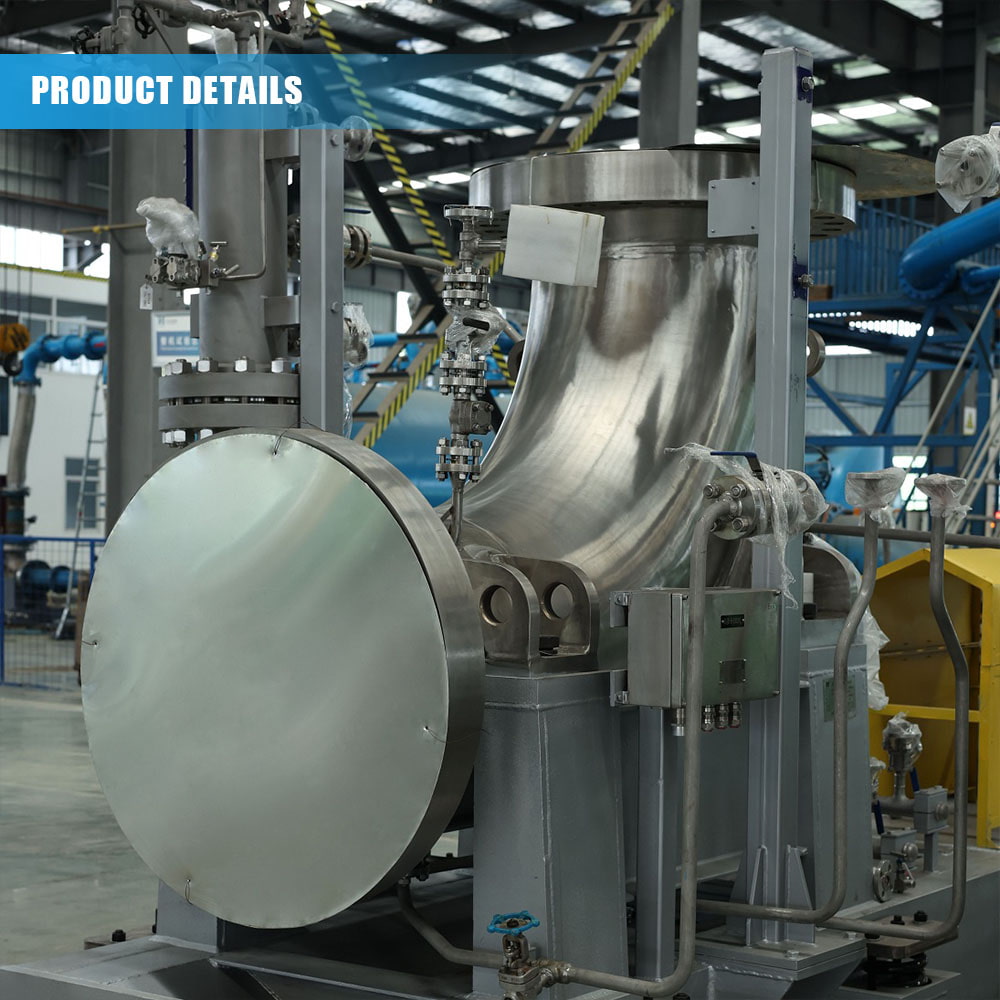

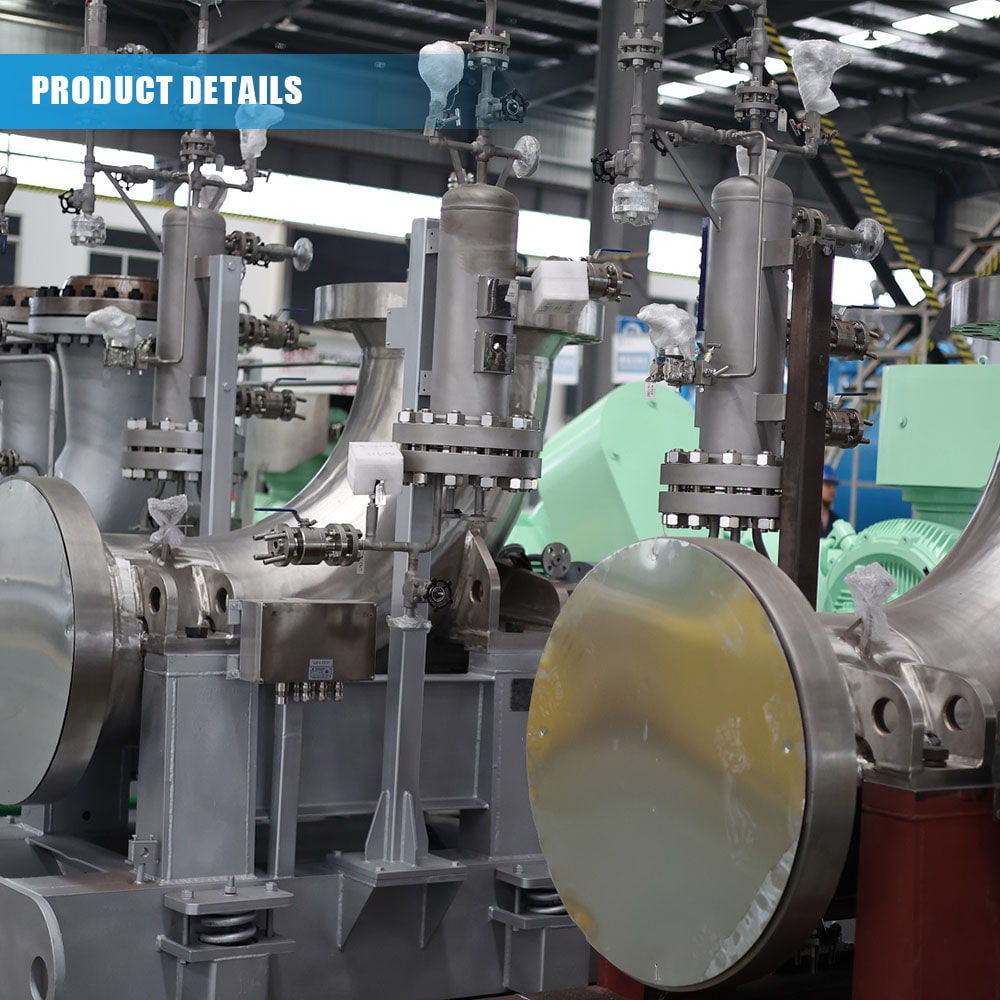

Loop reactor axial flow pumps, also known as elbow or propeller pumps, are used in high flow and low head applications. Huasheng offers a complete range of centrifugal axial flow pumps especially designed to handle severe pumping conditions.Our axial chemical flow pumps are used for high flows and low differential head applications. The pump and motor are flexibly coupled and installed on a common baseplate.
Features:
(1) Hydraulic developed with Computational Fluid Dynamics, stable and efficient site proven performance.
(2) Theory supported hydraulic model with lab simulation achieves customer’s expectation
(3) Smooth liquid contact surface, no dead-end, free residues of liquid and ease of cleaning.
(4) Impeller made of low-density alloy, one piece forged material machined with high precision multi-spindle machine tool.
(5) Unique advanced triple mech. seal extremely enhances the safety of shaft sealing, internal bearing with cooling system
ensures the stability of pump running.
Structure Characteristics:
1.Impeller 2. Main mechanical seal 3. Built-in bearing 4. Shaft 5. Pump body 6. Safety seal chamber 7. Safety seal
8. Connecting frame 9. Bearing body 10. Bearing 11. Auxiliary seal
Applications:
1）PP(polypropylene)
2）PE(polyethylene)
3）LAO(Line Alpha Olefin)
4）PAO(Poly Alpha Olefin)
